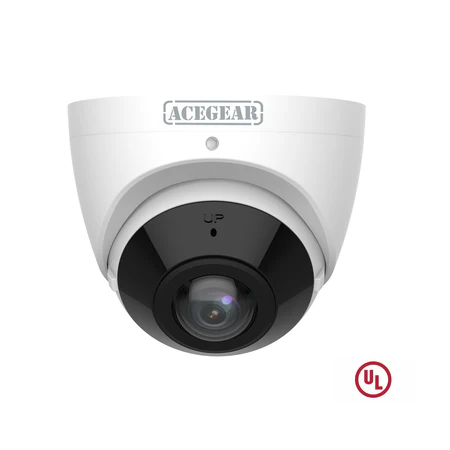

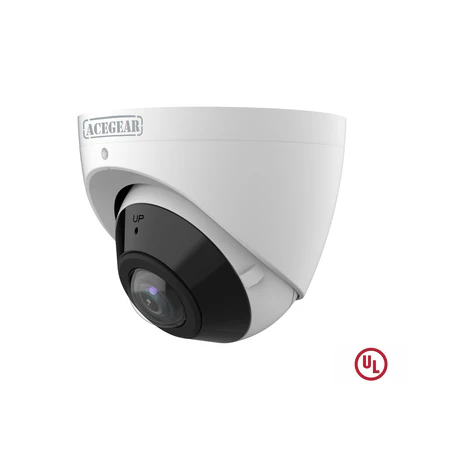

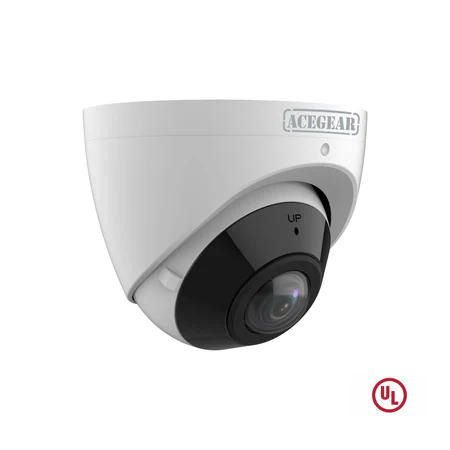

Acegear CI1502A-WA180 (5MP) Turret, IPC 1.68mm Fixed Lens Wide Angle, Intelligent IR Eyeball, Mic & Speaker, UL Listed.

Acegear CI1502A-WA180 (5MP) Turret, IPC 1.68mm Fixed Lens Wide Angle, Intelligent IR Eyeball, Mic & Speaker, UL Listed.

Sensor: High quality image with 5MP, 1/2.7″CMOS sensor
Wide Angle technology realize the horizontal viewing angle of 180°
The dewarp level can be configured in the range of 1-9
120dB true WDR technology enables clear image in strong light scene
Built-in Mic
Smart IR, up to 20m (66ft) IR distance
Supports 256 GB Micro SD card
DC12V or PoE(IEEE 802.3af) power supply
IP67 protection
3-Axis

Categories: IP Cameras, Surveillance

Description
Reviews (0)

Acegear AGCI1502A-WA180. 5MP HD Wide Angle of 180° Intelligent IR Fixed Turret Network Camera. With 120 dB True WDR (Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions. Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle.

Sensor	1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens	1.68mm@F2.0
Angle of View	(H)180° (O)180° (V)100°
Adjustment angle	• Pan: 0° ~ 360° • Tilt: 0° ~ 90° • Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.01 l ux (F 2.0 , AGC ON) 0 lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
IR Range	Up to 20m (66ft) IR range
IR On/Off Control	Auto/Manual
WDR	120dB
Frame Rate	Main Stream: 5MP (28801620), Max 30fps; 4MP (25601440), Max 30fps; 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; 1280720 Max 30fps Sub Stream: 1080P (19201080), Max 30fps;720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps Third Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352*288), Max 30fps
Video Bit Rate	128 Kbps~16 Mbps
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Supported
Flip	Normal/ Flip Vertical/ Flip Horizontal/180°
HLC	Supported
BLC	Supported
Video Compression	H.265, H.264, MJPEG
Audio Compression	G.711U, G.711A
Edge Storage	Micro SD, up to 256GB
Network Storage	ANR,NAS(NFS)
Network	10/100M Base-TX Ethernet
Built-in Mic	Supported
Power	DC 12V±25%, PoE (IEEE 802.3af)
Power consumption:	Power consumption: Max 5.5W
Dimensions (Ø x H)	Φ111 x 93mm (Φ4.4”x 3.7”)
Net Weight	0.42kg (0.93lb)
Material	Metal
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67
Reset Button	Supported
