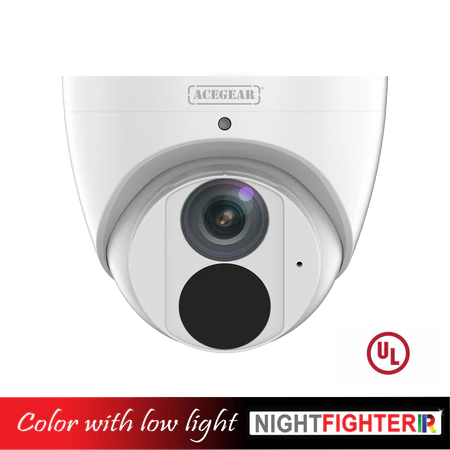

Acegear CI1805A-NF, IP 4K/8MP 2.8mm Fixed Lens, Night Fighter, Microphone, UL Listed

Sensor: High quality image with 4K/8MP, 1/2.7″CMOS sensor
Resolution: 8MP /4K
Lens: 2.8mm Fixed
Functions: 3D DNR , WDR, 9:16 Corridor Mode
IR Range: Smart IR, up to 30m (98ft) IR distance
Menu: OSD
Audio: Built-in Mic
Micro SD: Supports 256GB Micro SD card
Power: Support PoE power supply or DC 12V±25%
Protection: IP67
Warranty: 3 Years

Categories: IP Cameras, Surveillance

Description
Reviews (0)

Acegear AGCI1805A-NF provides important new technology for any security application. With 120 dB True WDR (Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions.

Sensor	1/2.7", 8.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F2.0
Angle of View	(H)112.4°, (V)60.1°, (O)146.1°
Adjustment angle	Pan: 3° ~ 360°, Tilt: 0° ~ 80°, Rotate: 3° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR on
Digital Noise Reduction	2D/3D DNR
Day/Night	IR-cut filter with auto switch (ICR)
IR Range	Up to 30m (98 ft) IR range
IR On/Off Control	Auto/Manual
WDR	120dB
Frame Rate	Main Stream: 8MP (38402160), Max 20fps; 5MP (30721728), Max 30fps; 4MP (25601440), Max 30fps; 1080P (19201080), Max 30fps; Sub Stream: 1080P (19201080), Max 30fps;720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps; Third Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps;
Video Bit Rate	128 Kbps~16 Mbps
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Smart IR	Support
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping	Supported
HLC	Supported
BLC	Supported
Video Compression	H.265, H.264, MJPEG
Audio Compression	G.711
Edge Storage	Micro SD, up to 256GB
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Network	1 RJ45 10M/100M Base-TX Ethernet
Built-in Mic	Supported
Power	DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.0W
Dimensions (L × W × H)	Φ110.5 x 94.1mm (Φ4.4” x 3.7”)
Net Weight	0.44kg (0.97lb)
Material	Metal
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67
Reset Button	N/A
