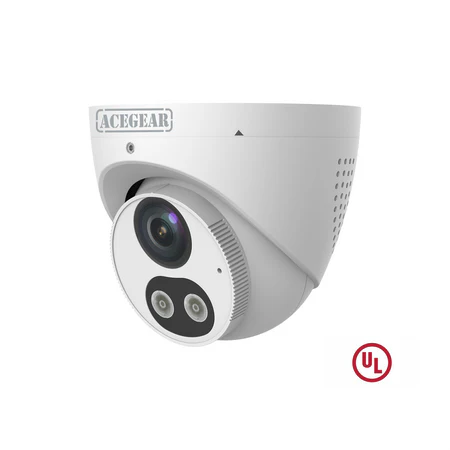

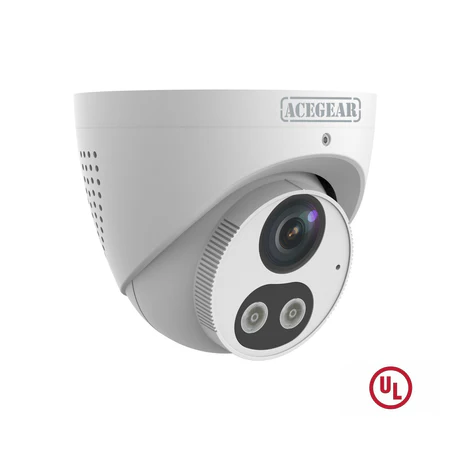

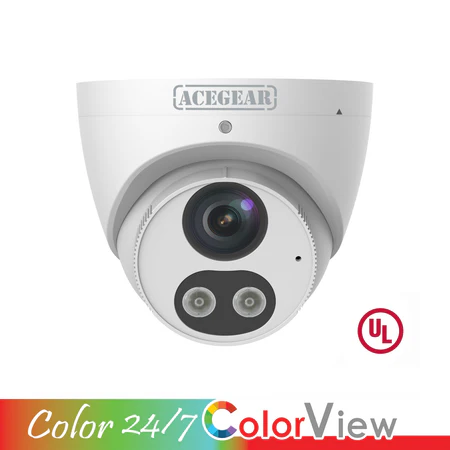

Acegear CI1806AS-CV, IP 4K/8MP 2.8mm Fixed Lens, Microphone/Speaker, 120dB WDR, Active Deterrence, UL Listed

Acegear CI1806AS-CV, IP 4K/8MP 2.8mm Fixed Lens, Microphone/Speaker, 120dB WDR, Active Deterrence, UL Listed

Sensor: High quality image with 8MP, 1/2.7″CMOS sensor
Resolution: 8MP /4K
Lens: 2.8mm Fixed
Functions: 3D DNR , WDR, 9:16 Corridor Mode
IR Range: Smart IR, up to 30m (98ft) IR distance
Menu: OSD
Audio: Built-in Mic and Speaker
Micro SD: Supports 256GB Micro SD card
Power: Support PoE power supply or DC 12V±25%
Protection: IP67
Warranty: 3 Years

Categories: IP Cameras, Surveillance

Description
Reviews (0)

Acegear AGCI1806AS-CV Color View Outdoor Fixed Turret Camera features an ƒ/1.6 lens aperture for maximum light gathering capability to provide full color imaging in extremely dark settings. The camera also contains a powerful auxiliary white light source to enhance colors and illuminate the scene when it approaches total darkness or on a defined schedule. True 120 dB WDR ensures high quality images under demanding light conditions. Supports sound and light alarm linkage. When Smart intrusion prevention is triggered , the camera links sound alarm and light linkage.

Sensor	1/2.7", 8.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F1.6
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.003Lux (F1.6, AGC ON) ; 0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
White Light Range	Up to 30m (98ft) white light range
IR On/Off Control	Auto/Manual
WDR	120dB
Frame Rate	Main Stream: 8MP (38402160) Max 25fps, 4MP (26881520), Max 30fps;4MP (25601440), Max 30fps; 3MP (23041296), Max 30fps; 1080P(19201080), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps;CIF(352288), Max 30fps; Third Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps;
Video Bit Rate	128 Kbps~6 Mbps
9:16 Corridor Mode	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Supported
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC	Supported
BLC	Supported
General Function	Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP
Video Compression	H.265, H.264, MJPEG
Audio Compression	G.711
Edge Storage	Micro SD, up to 256 GB
Network	10/100M Base-TX Ethernet
Built-in Mic	Supported
Built-in Speaker	Supported
Power	DC 12V±25%, PoE (IEEE 802.3af)
Dimensions (Ø x H)	Φ111 x 95mm (Φ4.4” x 3.7”)
Net Weight	0.43kg (0.948lb)
Material	Metal + Plastic
Working Environment	-30°C ~ 55°C (-22°F ~ 131°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67
Reset Button	N/A
