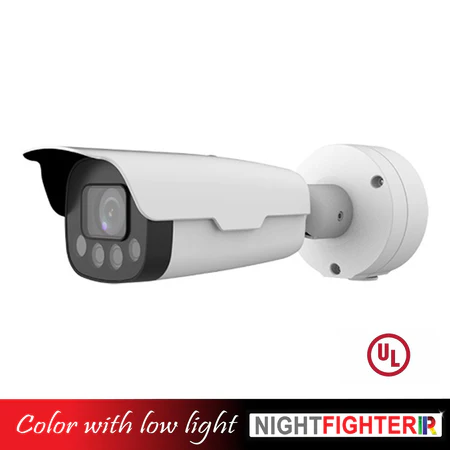

Acegear CI3200-LPR-NF, IP 2MP 4.7-47mm Motorized Lens, Night Fighter 120dB True WDR

High quality image with 1/2.8” 2MP CMOS
2MP industrial-grade sensor delivers 1920 x 1080 images
4 LED illumination beads provide up to 50m illumination.
Starlight optical sensor and integrated illuminator for vehicle
capture and recognition in low-light environments
Motorized zoom lens enables flexible focal length adjustment and
easy installation.
Automatic gain control, white balance, and WDR for various light
conditions.
Support PoE power supply
3-axis mounting bracket for various installation scenarios.

Categories: IP Cameras, Surveillance

Description
Reviews (0)

Acegear AGCI3200-LPR-NF Built-in vehicle&license plate recognition algorithm can recognize standard license plates of multiple countries. Supports allowlist and blocklist configuration. Supports vehicle access control when connected to a barrier. Supports Micro SD cards of up to 128GB. Supports Automatic Network Replenishment (ANR), the camera can automatically store video to its SD card in case of network disconnection. Supports audio acquisition and intercom. Custom OSD allows various vehicle information to be overlaid on the video image.

Shutter	Auto/Manual, range: 1/25 to 1/100000 s
Minimum Illumination	0.001lux (F1.6)
Focal Length	4.7 to 47mm, motorized zoom
Image collection format	1080P@25 (default), 1080P@30, 1080P@50, 1080P@60
Resolution	Main stream: 1080P (default), 720P, D1 Sub stream: 720P (default), D1, 2CIF, CIF Third stream: D1 (default), 2CIF, CIF
Frame Rate	60, 50, 30, 25 (default), 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1
Illumination	Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control
Application scenario	Vehicle speed ≤30km/h Supports simultaneous application to entry/exit scenes
Vehicle detection mode	Video (default) or inductive loop
License plate number recognition	Supports recognition of license plates with numbers and letters by default
List configuration	Supports allowlist and blocklist configuration, each list allows 20,000 items Supports import, export, add, and delete operations
Barrier opening policy	Open barrier only for the recognized vehicles Open barrier for all vehicles Open barrier only for vehicles on the allowlist Open barrier for vehicles not on the blocklist Configurable Boolean output ID
Boolean output	1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A
Boolean input	2 inputs, supports level/Boolean, with max level up to DC 5V
Smart IR	Supported
Edge Storage	Supports ANR with a Micro SD card, up to 128GB
Network	10/100M Base-TX Ethernet
Audio	1 × audio input, 1 × audio output
Power	DC 12V±25%, PoE (IEEE 802.3af) / Power consumption: Max 20.0W
Dimensions (L × W × H)	386mm x 126mm x 130mm
Weight	2kg
Material	Metal + plastic
Working Environment	-40℃ to 60℃, ≤90% RH
Ingress Protection	IP67, IK10
Reset Button	N/A
