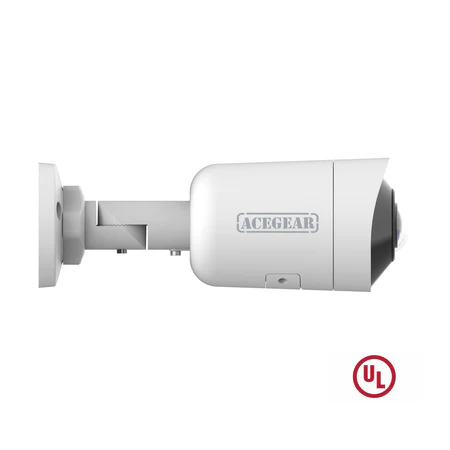

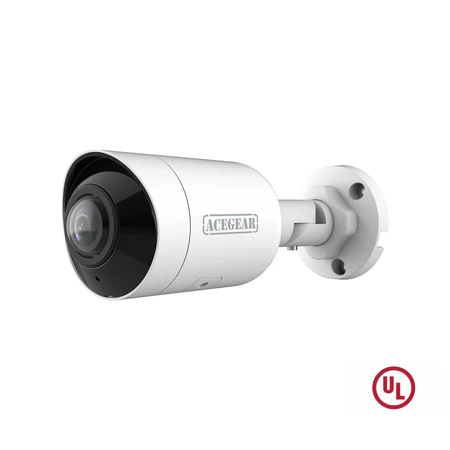

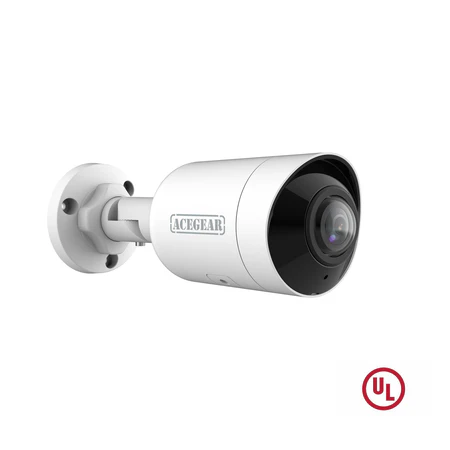

Acegear AGCI3502A-WA180. 5MP HD Wide Angle of 180° Intelligent IR Fixed Bullet Network Camera. With 120 dB True WDR (Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions. Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle.
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS |
|---|---|
| Lens | 1.68mm@F2.0 |
| Angle of View | (H)180° (O)180° (V)100° |
| Adjustment angle | • Pan: 0° ~ 360° • Tilt: 0° ~ 90° • Rotate: 0° ~ 360° |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Colour: 0.01 l ux (F 2.0 , AGC ON) 0 lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| IR Range | Up to 20m (66ft) IR range |
| IR On/Off Control | Auto/Manual |
| WDR | 120dB |
| Frame Rate | Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 1280*720 Max 30fps
Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/ Flip Vertical/ Flip Horizontal/180° |
| HLC | Supported |
| BLC | Supported |
| Video Compression | H.265, H.264, MJPEG |
| Audio Compression | G.711U, G.711A |
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR,NAS(NFS) |
| Network | 10/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: | Power consumption: Max 5.5W |
| Dimensions (L × W × H) | 198× 71 × 71mm (7.8” × 2.8” × 2.8”) |
| Net Weight | 0.42kg (0.93lb) |
| Material | Metal |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Ingress Protection | IP67 |
| Reset Button | Supported |
