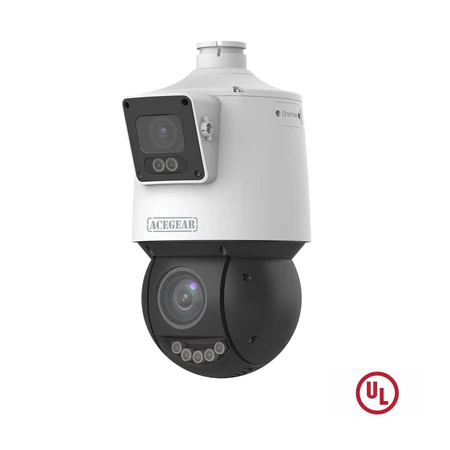

Acegear CI4402DL-25X-CV, 4MP+4MP ColorView, Dual-Lens Network PTZ Camera (copia)

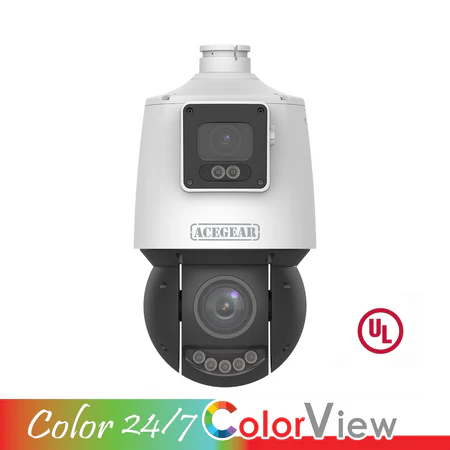

Acegear CI4402DL-25X-CV, 4MP+4MP ColorView, Dual-Lens Network PTZ Camera (copia) - Image 2

Acegear CI4402DL-25X-CV, 4MP+4MP ColorView, Dual-Lens Network PTZ Camera (copia)

Resolution: 4MP+4MP
Sensor: Pano: 1/1.8″, 4MP, CMOS, PTZ: 1/2.7″, 4MP, CMOS
Lens: Pano: 4mm, PTZ: 4.8~120mm automatic focusing and motorized zoom lens
Functions: WDR,3DNR, smart intrusion
IR: Pano: up to 98.4ft (30m) Warm Light PTZ: Up to 328 ft. (100 m) IR
Menu: OSD
Micro SD: Supports up to 256GB Micro SD card
Audio: Alarm 2 in and 1 out, Audio 1 in and 1 out
Power: Support 12V DC/PoE power supply
Protection: IP66
Warranty: 1 Year

Categories: IP Cameras, Surveillance

Description
Reviews (0)

Acegear CI4402DL-25X-CV The Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same time is a very compact PTZ with a whopping 100m IR and 25x zoom. Due to its compact design, this PTZ is applicable in areas where a traditional PTZ is too large. Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection, People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios. PTZ channel can be linked to fixed channel’s smart intrusion prevention to track the objects triggering the rule

It is also possible to set presets and patrols in this PTZ. The PTZ only needs 0.003Lux to give a color image. In addition, the PTZ has 120dB true WDR so that backlighting for this PTZ is no problem at all.

Image Sensor	Pano: 1/1.8", 4MP, CMOS, PTZ: 1/2.7", 4MP, CMOS
Min. Illumination	Pano: Colour: 0.003 Lux (F1.0, AGC ON) 0 Lux with warm Light PTZ: Color:0.003 lux (F1.5, AGC ON) 0 lux with IR
Shutter speed	Auto/Manual, 1 ~ 1/100000s
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Focus mode	Auto, semi-automatic, manual
Privacy Mask	24 areas, up to 4 areas per scene
Lens	Pano: 4mm@F1.0 PTZ: 4.8 ~ 120mm@F1.5, AF automatic focusing and motorized zoom lens
Zoom speed	Approx. 3.6 s (optical lens, wide-tele)
Field of View	Pano:(H): 94.9°; (V): 51.5°; (O): 116.7° PTZ: (H): 55.46°~3.09° (Wide-Tele); (V): 32.94°~1.73°(Wide-Tele); (O): 68.22°~3.65° (Wide-Tele)
Day/Night	IR-cut filter with auto switch (ICR)
Wide Dynamic Range	120dB
Digital noise reduction	3D DNR
Digital zoom	16X
Pan range	360° endeless
Pan speed	Configurable, 0.1°/s ~ 80°/s, Preset speed: 80°/s
Tilt range	–15° ~ 90°
Tilt speed	Configurable, from 0.1°/s ~ 80°/s, Preset speed: 80°/s
Presets	1024
Patrol scan	16 patrols, up to 64 presets for each patrol
Auto Tracking	only PTZ support
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Communication Interface	1 * RJ45 10M/100M Base-TX Ethernet
On-board storage	Built-in Micro SD / SDHC / SDXC slot, up to 256 GB
Video Compression	H.265, H.264, MJPEG
Audio interface	1-ch audio input and 1-ch audio output with 1 Built in Speaker
Operating Conditions	-40℃ ~ +65℃(-40°F ~ +149°F)，Humidity: ≤95% RH (non-condensing)
Power Consumption	DC12V(±25%,3A), PoE+(IEEE 802.3at) , 24 W
Protection Level	IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IR Range	Pano: up to 98.4ft (30m) Warm Light PTZ: Up to 328 ft. (100 m) IR
Serial Port	1 RS-485
Dimensions	Camera: Ø163 x 304mm (Ø6.4” x 12.0”)
Weight	2.27kg (5.00lb)
Reset Button	Support
