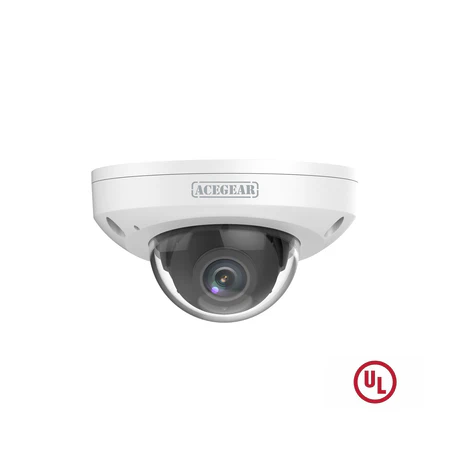

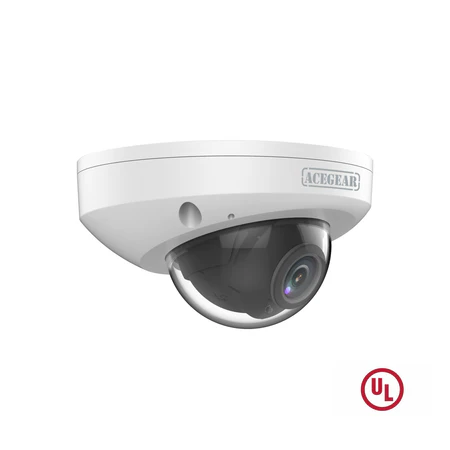

Acegear CI7409A-NF, IP 4MP 2.8mm Fixed Lens, Microphone, 1/3" CMOS, 2688x1520 30fps / DC12V & PoE / IR range: up to 30m(98ft), UL Listed / 0.003 Lux Min. Ilumination / Micro SD Card Slot, UL.

Acegear CI7409A-NF, IP 4MP 2.8mm Fixed Lens, Microphone, 1/3″ CMOS, 2688×1520 30fps / DC12V & PoE / IR range: up to 30m(98ft), UL Listed / 0.003 Lux Min. Ilumination / Micro SD Card Slot, UL.

High quality imaging with 4MP, 1/3″CMOS sensor
4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;

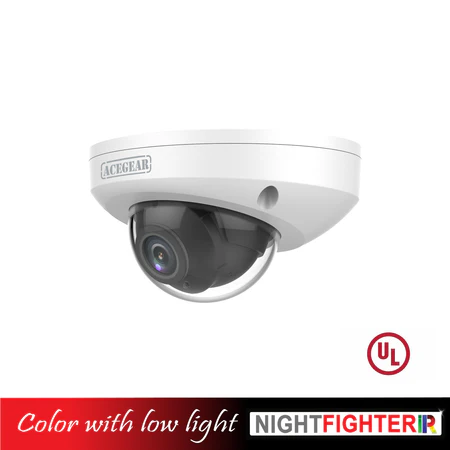

Night Fighter technology ensures ultra-high image quality in low illumination environment
120dB true WDR technology enables clear imaging in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 30m (98ft) IR distance
Supports 256 Gb Micro SD card
IK10 vandal resistant
IP67 protection
Support PoE power supply
3-Axis

Categories: IP Cameras, Surveillance

Description
Reviews (0)

Acegear AGCI7409A-NF provides important new technology for any security application. The Night Fighter Ultra-Low Light technology allows better color picture in very low light conditions (0.003 lux), and when completely dark (0 lux) the EXIR 2.0 technology enhances night mode performance. With 120 dB True WDR (Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions.

Sensor	1/3", 4.0 megapixel, progressive scan, CMOS
Lens	2.8mm@F1.6
Angle of View	(H)101.1° (O)111.1° (V)55.3°
Adjustment angle	• Pan: 0° ~ 90° • Tilt: 0° ~ 68° • Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.003Lux ( F1.6, AGC ON), 0Lux with IR
Digital Noise Reduction	2D/3D DNR
IR Range	Up to 30m (98ft) IR range
IR On/Off Control	Auto/Manual
WDR	120dB
Frame Rate	Main Stream: 4MP (26881520), Max 30fps; 4MP (25601440), Max 30fps; 3MP (23041296), Max 30fps; 2MP (19201080), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352288), Max 30fps; Third Stream: D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate	128 Kbps~16 Mbps
9:16 Corridor Mode	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital NoiseReduction	2D/3D DNR
Smart IR	Supported
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLC	Supported
BLC	Supported
Video Compression	H.265, H.264, MJPEG
Audio Compression	G.711
Edge Storage	Micro SD, up to 256GB
Network Storage	ANR,NAS(NFS)
Network	10/100M Base-TX Ethernet
Built-in Mic	Supported
Power	DC 12V±25%, PoE (IEEE 802.3af)
Power consumption:	Max 6.0W
Dimensions (Ø x H)	Φ110 x 61mm (Ø4.3” x 2.4”)
Net Weight	0.35kg (0.77lb)
Material	Metal + plastic
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67
Reset Button	N/A
