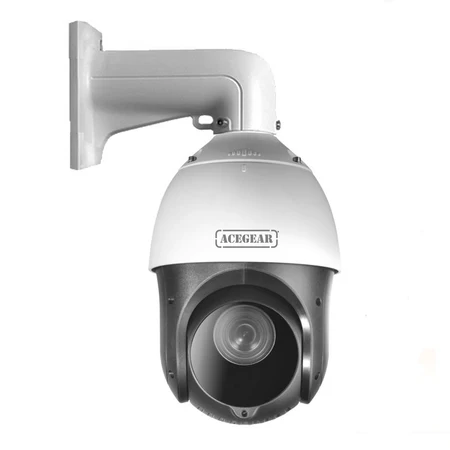

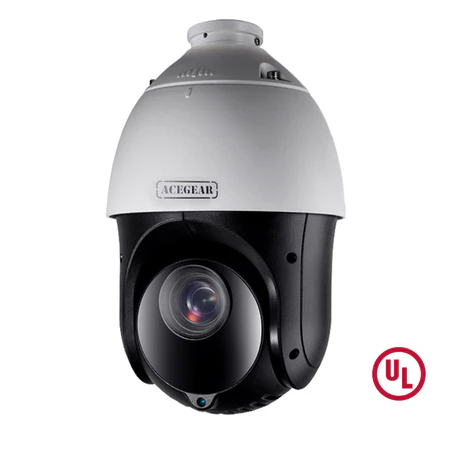

Acegear CT4252.25XIRD 2MP HD-TVI/CVI/AHD 25X Optical EXIR 300ft. Coax Control 12VDC, (Wall Bracket Included), UL Listed

Resolution: 2 MP High Resolution
Sensor: 1/2.8’’ Progressive Scan CMOS
Lens: 4.8 ~ 120mm, 25x optical zoom
Functions: 3DNR, WDR.
Menu: OSD
IR Range: EXIR, smart IR, up to 300ft. IR distance
Multiprotocol Output: TVI/AHD/CVI/CVBS
Control: Coax OSD and PTZ Control
Protection: IP66
Warranty: 1 Year

Categories: Surveillance, TVI Cameras

Description
Reviews (0)

The Acegear AGCT4252.25XIRD 2MP HD-TVI PTZ Camera with Night Vision is equipped with a 1080P progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps.

This PTZ Camera has a 25X Optical Zoom and a maximum night vision range of 300ft. HD-TVI technology allows the camera to be controlled and transmit HD video over coaxial cables.

Image Sensor	1/2.8’’ Progressive Scan CMOS
Frame Rate	2MP@30fps
Effective Pixels	1920 x 1080
Min. Illumination	Color: 0.005Lux@( F1.6,AGC ON); B/W: 0.001Lux@( F1.6,AGC ON), 0 Lux with IR
Lens	4.8 ~ 120mm, 25x optical zoom
Zoom Speed	Approx.3s (Optical Wide~Tele)
Angle of View	57.6-2.5 degree(Wide-Tele)
Focus mode	Auto / Semi-auto / Manual
Min. Working Distance	10~1,500mm(Wide~Tele)
Digital Zoom	16x
Shutter speed	1 s to 1/10,000 s
Day/Night	IR cut filter with auto switch
Wide Dynamic Range	True 120dB WDR
Noise Reduction	3D-DNR
Synchronization	Internal synchronization
Aperture Range	F1.6-F3.5
S/N Ratio	≥ 50dB
AGC	Auto / manual
White Balance	Auto / Manual / ATW/ Indoor / Outdoor
Privacy Mask	8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Enhancement	3D DNR,BLC, EIS
Range	Pan:360° endless; Tilt: -15°~90°(Auto Flip)
Speed	Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s
Proportional zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of preset	256
PTZ position display	On / Off
Preset freezing	Yes
Patrol	10 patrols, up to 32 presets per patrol
Pattern	5 patterns, with the total recording time not less than 10 minutes
Park Action	Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
Schedule task	Preset / Patrol / Pattern / Pan - Scan / Tilt - Scan / Panorama - Scan / Day - Mode / Night - Mode / Zero - Calibration / None
Power-off memory	Yes
IR Distance	Up to 300ft. (100m.)
IR Intensity	Auto adjustable, depending on the zoom range
Analog HD output	Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
CVBS output	1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
RS-485 interface	Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function	UTC protocol (or HIKVISION-C protocol in previous DVR)
Operating Conditions	-30 °C ~ 65 °C (-22 °F ~ 149 °F) Humidity 90% or less (non-condensing)
Power Supply	DC12V
Power Consumption	Max. 20W
Protection level	IP66, TVS 4,000V lightning and surge protection
Mounting	Optional
Warranty	12 mo. with proof of purchase *exclusion apply (see warranty terms for details).
Communication	Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions	Camera: Φ 6.47" x 11.61" (Φ164.5 × 295 mm)
Weight	4.41 lb. (2000 g.)
