Acegear CT7284CV-AOC-EZ, 2MP ColorView 2.8mm Lens, Audio Over Coaxial, TVI/AHD/CVI/CVBS

Resolution: 2MP 1920 x 1080
Sensor: 1/3″ Progressive Scan CMOS
Lens: 2.8 mm Fixed
Functions: 3D DNR, WDR
Light Distance:: Up to 32ft (10m)
Multiprotocol Output: TVI
Menu: OSD
Protection: IP67
Warranty: 3 Years

Categories: Surveillance, TVI Cameras

Description
Reviews (0)

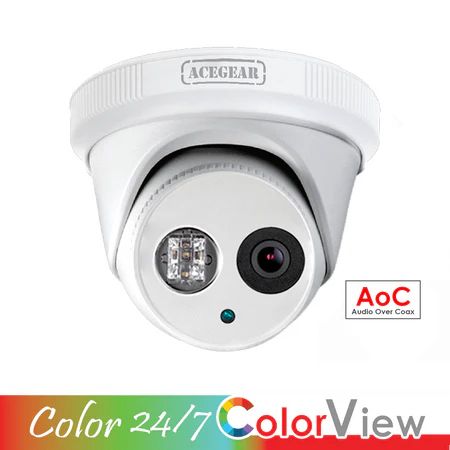

Acegear CT7284CV-AOC-EZ ColorView Outdoor Fixed Turret Camera features an ƒ/1.0 lens aperture for maximum light gathering capability to provide full color imaging in extremely dark settings.

The camera also contains a powerful auxiliary white light source to enhance colors and illuminate the scene when it approaches total darkness or on a defined schedule.

The 2.8 mm fixed lens option is optimized for capturing a wide horizontal field of view.

Image Sensor	2 MP progressive scan CMOS
Max. Image Resolution	1920 (H) × 1080 (V)
Min. Illumination	Color: 0.01 lux @ (f/1.0, AGC on), 0 lux with white light
Slow shutter	1/25s~1/45,000s
Lens	2.8 mm, horizontal field of view: 104°
Aperture	ƒ/1.0
Focus	Fixed
Lens Mount	M16
3-Axis Adjustment	Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Image Mode	STD/High Saturation
AGC	Yes
White Balance	Auto/Manual
BLC (Backlight Compensation)	Yes
WDR	Yes
Functions	Brightness, sharpness, 3D DNR, mirror, smart light
Video Output	Switchable TVI/AHD/CVI/CVBS
Audio	TVI
Operating Conditions	-20℃～+70℃, Less than 95%RH (No condensation）
Power Supply	DC12V±10﹪
Power Consumption	Maximum 4.3 W
Visible Light Range	Up to 32 ft (10 m)
Protection Level	IP67
Material	Main body: metal, mounting base: plastic
Communication	Up-the-Coax
Warranty	36 mo. with proof of purchase *exclusion apply (see warranty terms for details).
Dimensions	Ø 4.52" x 3.5" (Ø 115 mm x 89 mm)
Weight	0.74 lb. (336 g)
