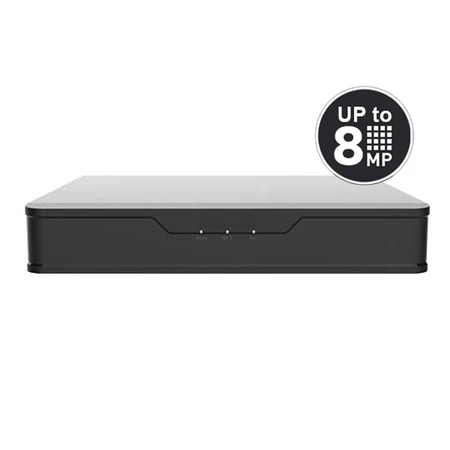

The AGDVR4K4Q3SAT1 4 Channel DVR, is a professional Digital Video Recorder with 4 BNC Inputs plus 2 IP Channels for a total of 6 Channel Operation. Advanced features include Long Range Video Transmission and multiple format support.
Accept HD BNC Cameras up to 8MP Resolution and can support TVI, AHD, CVI, CVBS and IP Formats, therefore the DVR is adaptable to multiple applications.
The DVR has (1) SATA Bay with 8TB capacity so it will provide plenty of storage for you.

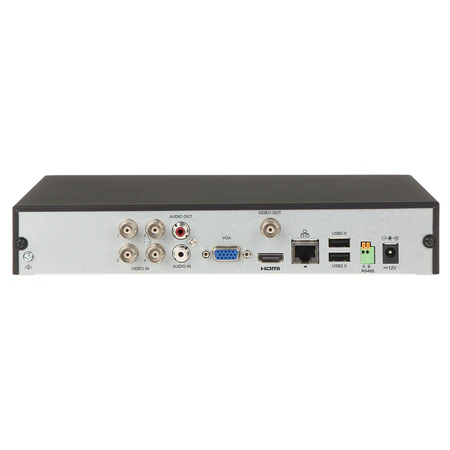

| Analog Video Input | 4CH BNC interface (1.0 Vp-p, 75 Ω) |
|---|---|
| HDTVI Input | 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps |
| AHD Input | 8MP@15fps 5MP@20fps 4MP@30fps 1080P@30fps 720P@30fps |
| HDCVI Input | 8MP@15fps 5MP@25fps 4MP@30fps 1080P@30fps 720P@30fps |
| CVBS Input | Support |
| IP Video Input | 2-ch(only IP up to 6ch), each channel up to 4MP |
| Audio Compression | G.711u |
| Audio Input/Two Way Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ) |
| CVBS Output | 1-ch, BNC |
| VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| HDMI Output | 3840 x 2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 8MP Lite/5MP/5MP Lite/4MP Lite/1080P/720P/CIF |
| Recording Frame Rate | Main stream: 8MP Lite@8fps 5MP Lite@12fps 4MP Lite@15fps 2MP@15fps 720P@30fps Sub stream: D1@30fps(Max) |
| Capability | Analog: 4 x 8MP Lite@8, 4x 5MP Lite@12, 4x 4MP Lite@15, 4 x 1080P@15 IP: 1 x 4MP@30, 2 x 1080P@30 |
| Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Bit Rate | 64 kbps |
| Dual Stream | Support |
| Stream Type | Video, video & audio |
| Synchronous Playback | 4CH |
| Live View Display | HDMI/VGA: 1/4/6/8/9 |
| Incoming Bandwidth | 40Mbps (Up to 48Mbps after all analog channel conversion) |
| Outgoing Bandwidth | 48Mbps |
| Remote Connections | 128 |
| SATA | 1 SATA interface |
| Capacity | Up to 8 TB capacity for each HDD |
| Network Interface | 1 RJ45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface | Rear panel: 2 x USB2.0 |
| Power Supply | 12VDC |
| Consumption (Without HDD) | ≤ 10 W |
| Working Temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Dimensions (WxDxH) | 260mm ×226mm× 47mm (10.2" × 8.9"×1.8") |
| Weight (Without HDD) | ≤1.1 Kg ( 2.42lb ) |
