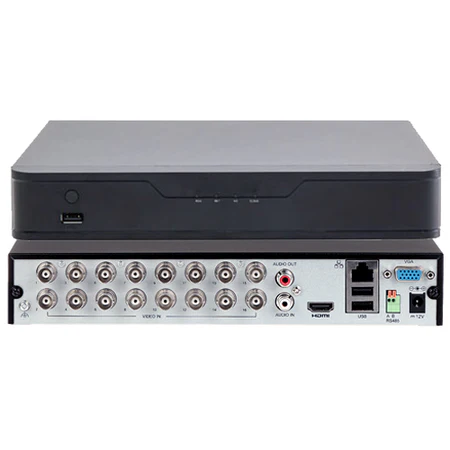

The AGDVR516G3SAT1 16 Channel DVR, is a professional Digital Video Recorder with 16 BNC Inputs plus 8 IP Channels for a total of 16 Channel Operation. Advanced features include Long Range Video Transmission and multiple format support. The DVR has (1) SATA Bay with 8TB capacity so it will provide plenty of storage for you.
| Analog video input | 16CH BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|---|---|
| HDTVI input | 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps |
| AHD input | 5MP@12fps 4MP@15fps 1080P@30fps 720P@30fps |
| HDCVI input | 1080P@30fps 720P@30fps |
| CVBS input | Support |
| IP video input | 8-ch(up to 16-ch after analog camera conversion) |
| Audio compression | G.711u |
| Audio Input | 1-ch, RCA) |
| HDMI/VGA output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Encoding resolution | 5MP Lite/4MP Lite /1080P/1080P Lite/720P/CIF |
| Frame rate | Main stream: Sub stream:
5MP Lite@6fps D1@6fps |
| Audio output | 1-ch, RCA |
| Audio bit rate | 64Kbps per channel |
| Capability | Analog: 8 x 5MP Lite@6, 8 x 4MP Lite@8, 8 x 1080P Lite@12 IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30 |
| Synchronous playback | HD:8-ch ; SD:16-ch |
| Incoming bandwidth | 40Mbps (up to 56Mbps after all analog camera conversion) |
| Remote connections | 128 |
| SATA | 1 SATA interface |
| Capacity | Up to 8 TB capacity |
| Network interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| USB interface | Rear panel: 2 x USB 2.0 |
| Power supply | 12VDC |
| Consumption (without HDD) | ≤ 8 W |
| Working temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ) |
| Working humidity | 10% to 90% |
| Dimensions (WxDxH) | 260mm ×226mm× 47mm (10.2" × 8.9"×1.8") |
| Warranty | 12 mo. with proof of purchase *exclusion apply (see warranty terms for details). |
| Weight (without HDD) | ≤1.1 Kg ( 2.42lb ) |
