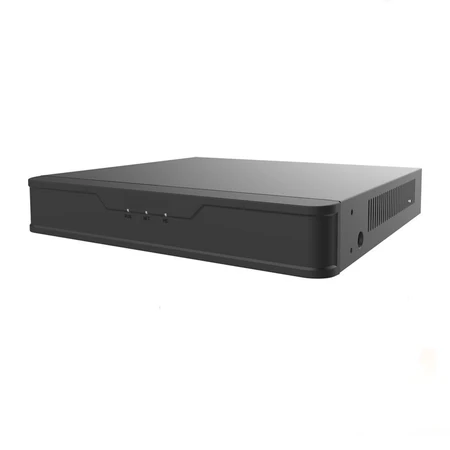

Acegear NVR584KSAT1-B, (8-CH), 1-SATA Interface, 8 PoE, 4K, UL Listed

Video Input: 8-channel input
Resolution: Up to 4K / 8MP
Video Output: HDMI and VGA simultaneous output
Support: Mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
Features: Cloud Upgrade, ANR technology to enhance the storage reliability when the network is disconnected
Hard Drive: 1 SATA HDD up to 8TB
App: Guard Viewer
Warranty: 1 Year

Categories: NVR, Surveillance

Description
Reviews (0)

The Acegear AGNVR584KSAT1-B NVR is capable to record in full digital IP cameras up to 4K/8MP in resolution. The system can be remote access using mobile app available for Android and Apple iOS devices, Acegear also offers a free video management software available for Windows and MacOS.The NVR has (1) SATA Bay with 8TB capacity so it will provide plenty of storage for you.

IP Video Input	8-CH
Two-way audio input	1-ch, RCA (2.0 Vp-p, 1kΩ)
Incoming bandwidth	80Mbps
Outgoing bandwidth	64Mbps
Remote connection	128
Recording resolution	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
HDMI/VGA output	HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60 VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
Audio output	1-ch, RCA (Linear, 1 KΩ)
Synchronous Playback	8-ch
Decoding Format	Ultra 265/H.265
Live view/Playback resolution	8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 9 x 4MP@25, 10 x 3MP@30, 16 x 1080p@30
Network protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
VCA Detection by Camera	Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, SMD(Smart Motion Detection)
VCA Search	Behavior Search, People Counting Report
People Counting	People Flow Counting, Crowd Density Monitoring
Smart Intrusion Prevention (SIP), SMD by Camera	Total 4-ch
SATA	1 SATA interface for 1 HDD, up to 8TB capacity
Network interface	1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface
USB interface	Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
PoE Interface	8 RJ45 10M/100M self-adaptive Ethernet Interface
PoE Max Power	Max 30W for single port, Max 75W in total
PoE Supported Standard	IEEE 802.3at, IEEE 802.3af
Power supply	52V DC/1.8A
Consumption (without HDD)	≤ 10 W
Working temperature	-10°C ~ + 55°C (+14°F ~ +131°F)
Working humidity	10% to 90%
Dimensions (WxDxH)	260mm × 222mm × 47mm (10.2" × 8.7" × 1.8")
Weight (without HDD)	≤ 0.98 kg (2.16 lb)
