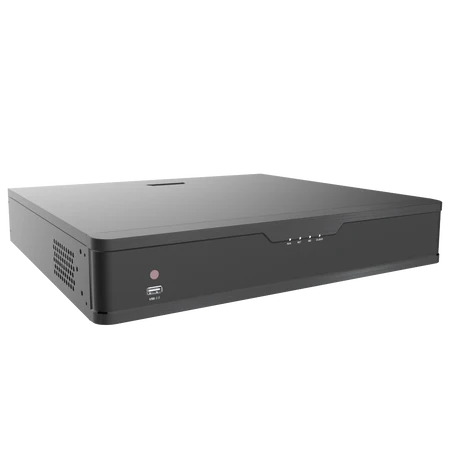

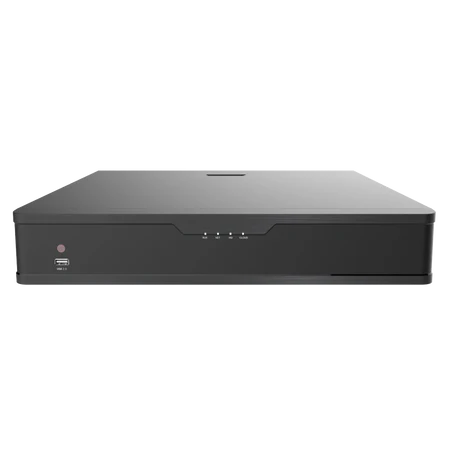

The Acegear AGNVR6400P4KSAT8 NVR is capable to record in full digital IP cameras up to 12MP in resolution. The system can be remote access using mobile app available for Android and Apple iOS devices, Acegear also offers a free video management software available for Windows and MacOS.The NVR has (8) SATA Bay with 12TB capacity so it will provide plenty of storage for you and it is capable to support Array RAID 0,1,5,6,10
| IP Video Input | 64-CH |
|---|---|
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Incoming bandwidth | 384Mbps |
| Outgoing bandwidth | 384Mbps |
| Remote connection | 128 |
| Recording resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| HDMI/VGA output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2(HDMI audio output is not supported): |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| Synchronous Playback | 16-ch |
| Live view/Playback resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 |
| Network protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| SATA | 8 SATA interface, up to 12TB for each HDD Array RAID 0, 1, 5, 6, 10 |
| Network interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
| USB interface | Front panel: 2 x USB2.0 Rear panel: 1 x USB3.0 |
| Power supply | 100~240 VAC |
| Consumption (without HDD) | ≤ 25 W |
| Working temperature | -10°C ~ + 55°C (+14°F ~ +131°F) |
| Working humidity | 10% to 90% |
| Dimensions (WxDxH) | 442mm ×426mm× 89mm (17.4" × 16.8"× 3.5") |
| Warranty | 12 mo. with proof of purchase *exclusion apply (see warranty terms for details). |
| Weight (without HDD) | ≤ 5.7 kg (12.57 lb) |
