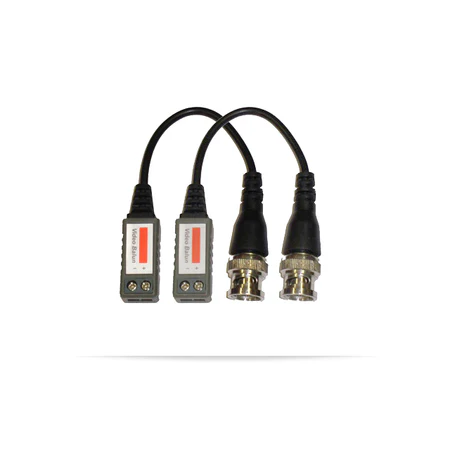

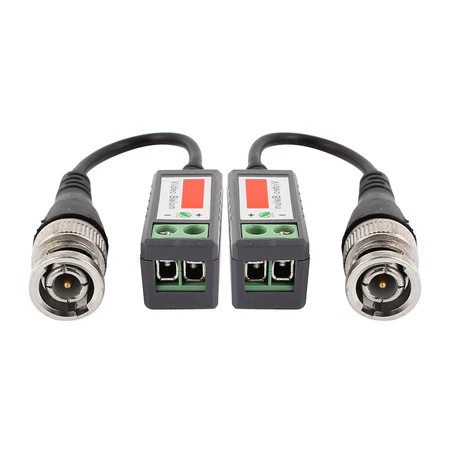

Acegear VB202P - VB2020P Video Balun Connectors (Pair).

Acegear VB202P – VB2020P Video Balun Connectors (Pair).

Name: Acegear VB202P - VB2020P Video Balun Connectors (Pair).
SKU: 1043
Availability: InStock

Video Balun Connectors Passive 1 ch Video Transmitter

CCTV Camera Passive Video Balun BNC Connector Coaxial Cable Adapter

Categories: CCTV Extenders, Surveillance

Description
Reviews (0)

• Video Balun Compatible with HD-CVI / TVI / AHD/ CVBS Signal
• Transmission Signal: 720P/960P/1080P
• Cable: CAT 5/5e/6
• Transmission distance: TVI 100 meters (328ft), AHD 200 meters (656ft), CVBS 300 meters (984ft)
• Frequency response: DC to 60Mhz
• Attenuation: 0.5dB type
• CMRR: 60dB
• Surge protection:4KV
• ESD:8KV
• Connectors: Male BNC and
• Impedance: BNC: 75ohms
• Terminal: 100ohms
• Working Temperature: -10°C to +70°C
• Storage Temperature: -30°C to + 70°C
• Humidity : 0 to 95%
• Dimension: 14.5*1.5*1.5cm
• Material: PVC + Copper + Alloycement
