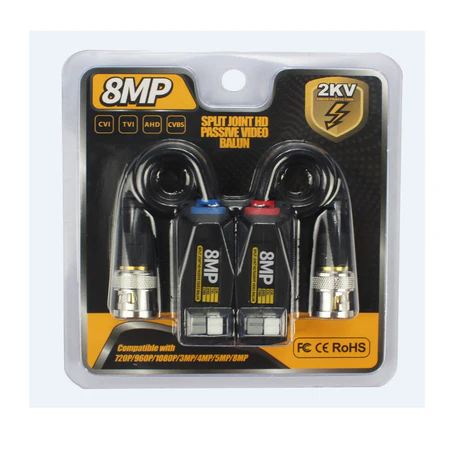

Acegear VB8MP02 - 8MP HD Attachable Design, Passive Balun, Level3 Lighting Protection, Support HD-CVI/AHD/TVI/CVBS Signal (Pair)

Acegear VB8MP02 - 8MP HD Attachable Design, Passive Balun, Level3 Lighting Protection, Support HD-CVI/AHD/TVI/CVBS Signal (Pair) - Image 2

Acegear VB8MP02 – 8MP HD Attachable Design, Passive Balun, Level3 Lighting Protection, Support HD-CVI/AHD/TVI/CVBS Signal (Pair)

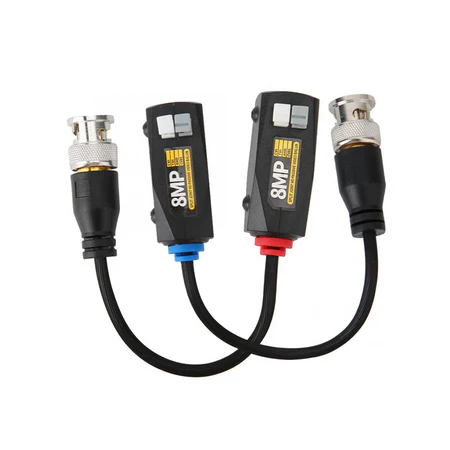

Acegear 8MP Single Channel Split Joint HD Video Balun

1Pair 10/100Mbps 1CH Passive IP Network Coaxial Transmitter Receiver Extender for IP NVR Camera, IP Network Transmitter, IP Network Receiver

Support for multiple splices, color separation of front-back ends.
Built-in TVS thunder-proof protective tube, thunder-proof protecting up to 3 level.
BNC head with built-in mesh clips for enhancing ground contact and better performance.
High Q coils for increasing 8MP signal passability, support HD-CVI/AHD/TVI/CVBS video signals.
Dual panel with printed circuit board material to reduce attenuation of high frequency signal.

Categories: CCTV Extenders, Surveillance

Description
Reviews (0)

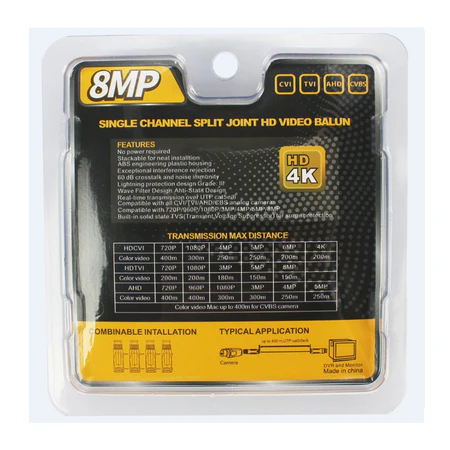

No Power Required
Strackable for neat installtion
ABS engineering plastic housing
Exceptional interference rejection
60dB crosstalk and noise immunity
Lightning protection design grade: III
Wave filter design anti-statit design

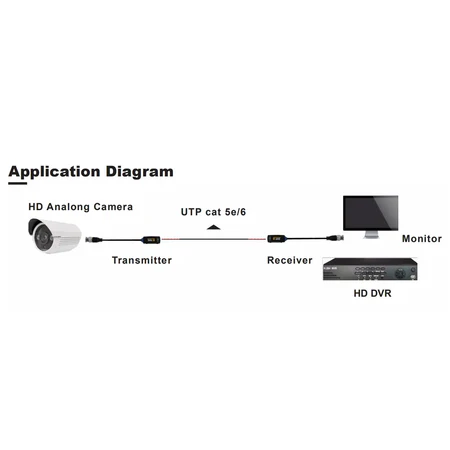

Real-time transmission over UTP CAT5E/S
Compatible with alll CVI/TVI/AHD/CVBS analog cameras
Built-in solid state TVS(Transient Voltage Suppressor) for surge Protection(2KV).

Material	ABS
Color	Shown as picture
Thunder-proof Protecting Level	3
Compatible Video Signal	HD-CVI/AHD/TVI/CVBS
Transmission Distance	720P/960P/1080P?400M 3MP/4MP/5MP?250M 8MP?200M
Attenuation	1.5 dB typ Max
Category Type	UTP cat5e/6
Impedance	100±20ohms
DC Loop Resistance	52 ohms per 1,000ft(18 ohms per 100m)
Video input/output	Male BNC connector
Dimensions(LWH)	391616mm(BNC connector & cable excluded
Net Weight	0.25 LBS
