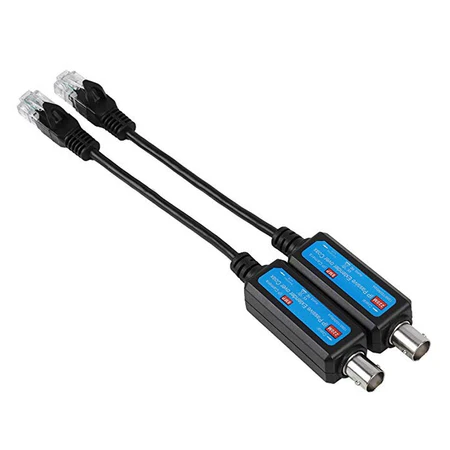

Acegear VBEOC702 Ethernet Over Coax Converter 10/100M Enable Using IPC Over Existing Coax Cable, Transmission 220M.
Balum Ethernet over coax converter 10/100M
1Pair 10/100Mbps 1CH Passive IP Network Coaxial Transmitter Receiver Extender for IP NVR Camera, IP Network Transmitter, IP Network Receiver
- Use coaxial lines to transmiss the real time digital signals, transmission distance max up to 220m.
- Fast and easy to install, save the cables, the installation cost and time.
- Convenient to use. Passive device, no power required.
- Built in surge protection, safety in use.
- The traditional coaxial line analog camera system is upgraded to the network HD camera, both of which can be replaced directly.
Specs
| Video | PAL, NTSC, SECAM |
|---|---|
| Standard | IEEE802.3 10base-T |
| Speed | 10/100Mbps |
| Longest Distance | 220M |
| Cable | Coax Cable (RG59) |
| Working Temperature | -20 ℃ to +70 ℃ |
| Storage Temperature | -40 ℃ to +150 ℃ |
| Humidity | (non-condensing) 0-95 Percent |
| Size | 2.0*7.5*1.8cm/0.8*3.0*0.7in (Cable Excluded) |
| Pacakge Weight | 49g/1.7oz |
