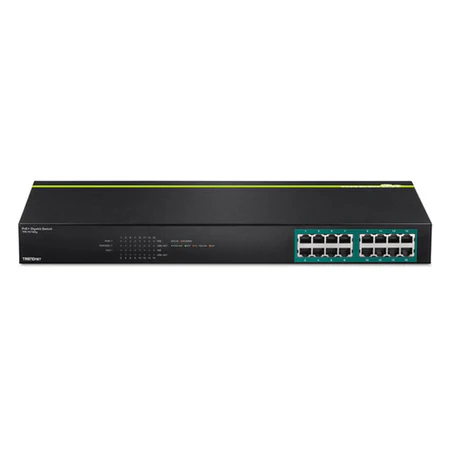

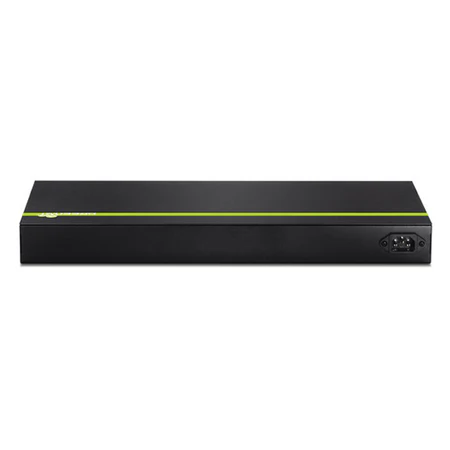

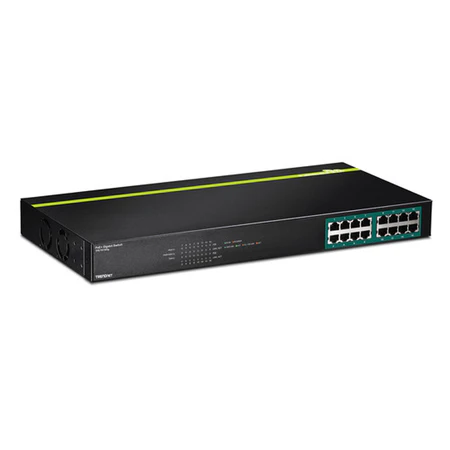

TRENDnet TPE-TG160g 16-port GREENnet Gigabit PoE+ Switch (250W)

TRENDnet TPE-TG160g 16-port GREENnet Gigabit PoE+ Switch (250W) - Image 2

TRENDnet TPE-TG160g 16-port GREENnet Gigabit PoE+ Switch (250W)

16 x Gigabit PoE+ ports
246 W PoE budget
32 Gbps switching capacity
Sturdy metal switch
Rack mount brackets included
Lifetime Warranty*

Categories: PoE Switches, Surveillance

Description
Reviews (0)

TRENDnet’s 16-Port Gigabit PoE+ Switch, model TPE-TG160g, offers 16 x Gigabit PoE+ ports, a 32 Gbps switching capacity, and a PoE power budget of 246 Watts. This rugged metal switch comes with a rack mount kit.

Specs

Standards	IEEE 802.1d IEEE 802.1w IEEE 802.1p IEEE 802.1Q IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3az

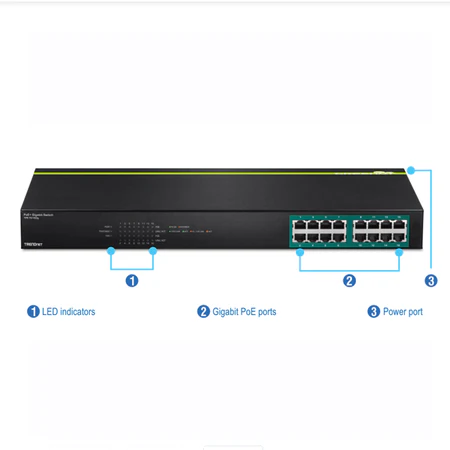

Device Interface	16 x Gigabit PoE/PoE+ ports LED indicators
Data Transfer Rate	Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) Gigabit Ethernet: 2000Mbps (full duplex)
Performance	Data RAM Buffer: 512 KB Switch Fabric: 32 Gbps MAC Address Table: 8 K entries Forwarding rate: 23.8 Mpps (64-byte packet size) Jumbo Frame: 10 KB
Management	HTTP Web based GUI Backup/Restore configuration Upgrade firmware 802.3ad Dynamic LACP
Spanning Tree	IEEE 802.1d STP (spanning tree protocol) IEEE 802.1w RSTP (rapid spanning tree protocol)
Link Aggregation	Static link aggregation (up to 2 groups)
Quality of Service (QoS)	Port-based QoS 802.1p Class of Service (CoS) Bandwidth Control/Rate Limiting per port (Min. Limit: 8Kbps) Queue Scheduling: Strict Priority (SP), Weighted Fair Queueing (WFQ)
VLAN	Port-based VLAN 802.1Q Tagged VLAN Up to 32 VLAN groups, ID Range 1-4094 Private VLAN Asymmetric VLAN Voice VLAN (5 user defined OUIs)
Multicast	IGMP Snooping v1/2/3 Block unknown multicast source Up to 32 multicast groups
Port Mirror	One to one Many to one
Storm Control	Broadcast (Min. Limit: 8Kbps) Multicast (Min. Limit: 8Kbps) Loopback Detection
Special Features	PoE+ support Enable/disable 802.3az Power Saving Wall mountable
Power	Input: 100 – 240V AC, 50/60Hz, 1.2A Output: 54V DC, 1.67A external power adapter Max. consumption: 68.6W
PoE	PoE budget: 246 Watts Pin 1,2 for power+ and pin 3,6 for power- (mode A) Over current protection Short circuit protection
Fan / Acoustics	Fanless design
MTBF	195,809 hours
Operating Temperature	0 – 40 °C (32 - 104 °F)
Operating Humidity	Max. 90% non-condensing
Dimensions	440 x 210 x 44 mm (17.3 x 8.3 x 1.7 in.)
Weight	3 kg (6.8 lbs.)
Certifications	CE FCC
