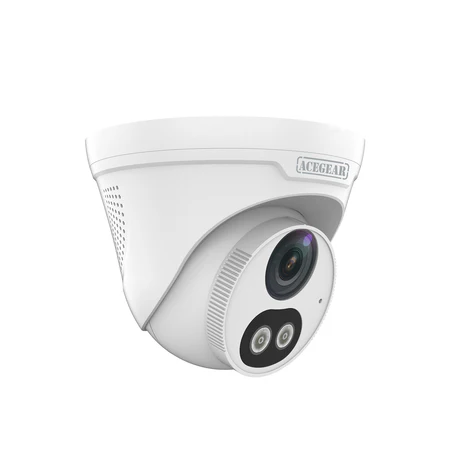

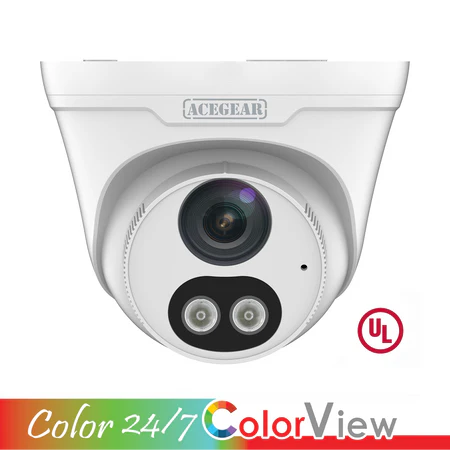

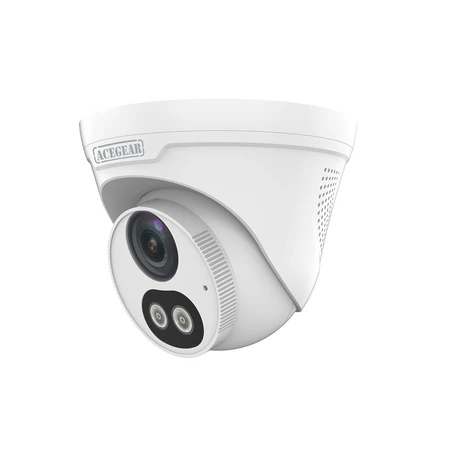

Acegear AGCI1206AS-CV Color View Outdoor Fixed Turret Camera features an ƒ/1.6 lens aperture for maximum light gathering capability to provide full color imaging in extremely dark settings. The camera also contains a powerful auxiliary white light source to enhance colors and illuminate the scene when it approaches total darkness or on a defined schedule. True 120 dB WDR ensures high quality images under demanding light conditions.
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS |
|---|---|
| Lens | 2.8mm@F1.6 |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination | Colour: 0.002Lux ( F1.6, AGC ON) 0Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| White Light Range | Up to 30m (98ft) white light range |
| IR On/Off Control | Auto/Manual |
| WDR | 120dB |
| Frame Rate | Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps~6 Mbps |
| 9:16 Corridor Mode | Supported |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Motion Detection | Up to 4 areas |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Smart IR | Supported |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Behavior Detection | Cross line, intrusion(based on human body detection) |
| General Function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP |
| Video Compression | H.265, H.264, MJPEG |
| Audio Compression | G.711 |
| Edge Storage | Micro SD, up to 128 GB |
| Network Storage | ANR,NAS(NFS) |
| Network | 10/100M Base-TX Ethernet |
| Built-in Mic | Supported |
| Built-in Speaker | Supported |
| Power | DC 12V±25%, PoE (IEEE 802.3af) |
| Dimensions (Ø x H) | Φ118 x 95mm (Φ4.6” x 3.8”) |
| Net Weight | 0.30kg (0.66lb) |
| Material | Metal + Plastic |
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Ingress Protection | IP67 |
| Reset Button | N/A |
