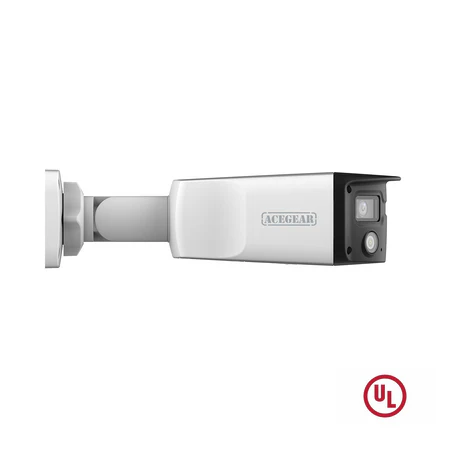

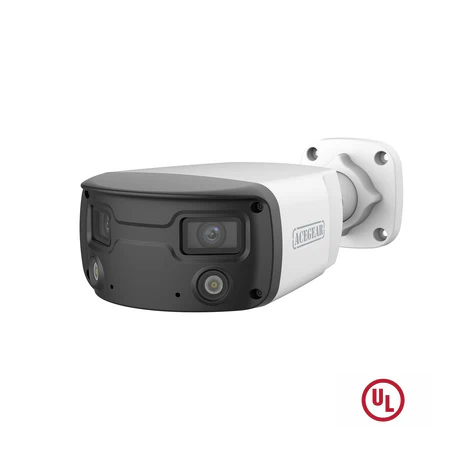

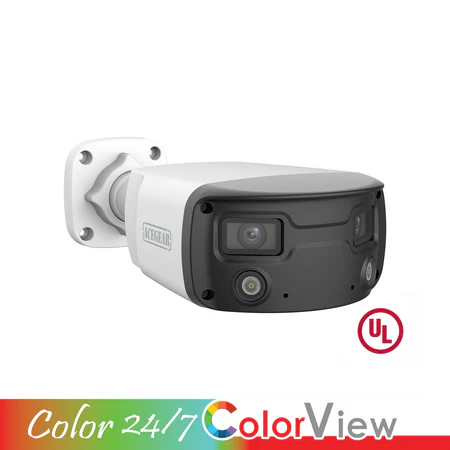

Acegear CI3402PNAS-CV, 4MP Color View Wide Angle up to 160.00°, Dual 4.0mm Lens, 98ft. LED Range, H.265, 48vPoE 12VDC UL Listed

Acegear CI3402PNAS-CV, 4MP Color View Wide Angle up to 160.00°, Dual 4.0mm Lens, 98ft. LED Range, H.265, 48vPoE 12VDC UL Listed - Image 2

Acegear CI3402PNAS-CV, 4MP Color View Wide Angle up to 160.00°, Dual 4.0mm Lens, 98ft. LED Range, H.265, 48vPoE 12VDC UL Listed - Image 3

Acegear CI3402PNAS-CV, 4MP Color View Wide Angle up to 160.00°, Dual 4.0mm Lens, 98ft. LED Range, H.265, 48vPoE 12VDC UL Listed

Name: Acegear CI3402PNAS-CV, 4MP Color View Wide Angle up to 160.00°, Dual 4.0mm Lens, 98ft. LED Range, H.265, 48vPoE 12VDC UL Listed
SKU: 518
Availability: InStock

FULL FEATURES ONLY AVAILABLE ON THE FOLLOWING NVR:

NVR1616P4KSAT2-E2
NVR3200P4KSAT4-E2
NVR3216P4KSAT4-E2
NVR88P4KSAT1-E2

Acegear CI3402PNAS-CV, 4MP Color View

Sensor: High quality image with 4MP, 1/2.9″CMOS sensor
Resolution: 4MP (3840*1080)@25fps（Human Body Detection off）; 4MP (3840*1080)@20fps（Human Body Detection on)

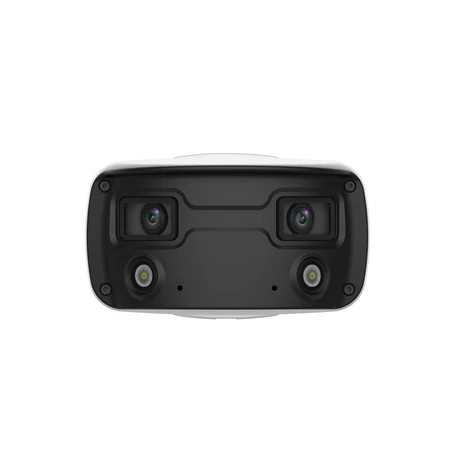

Lens: Dual Lens 4 mm The double lens splicing technology is adopted to realize the horizontal viewing angle of 160.00°±10
Functions: 3D DNR ,DWDR
IR Range: Color View technology ensures 24-hour full-color images
Menu: OSD
Micro SD: Supports up to 256GB Micro SD card
Audio: Built-in speaker and dual mics, & Alarm 1 in and 1 out, Audio 1 in and 1 out
Power: Support 12V DC/PoE power supply
Protection: IP67, IK10
Warranty: 3 Years

Categories: IP Cameras, Surveillance

Description
Reviews (0)

Acegear AGCI34160PNAS-CV 4MP HD Color View Wide Angle up to 160.00° Fixed Bullet Network Camera features a dual Lens with an ƒ/1.0 lens aperture for maximum light gathering capability to provide full color imaging in extremely dark settings. The camera also contains a powerful auxiliary white light source to enhance colors and illuminate the scene when it approaches total darkness or on a defined schedule.

Sensor	1/2.9", 4.0 megapixel, progressive scan, CMOS
Lens	2 * 4.0mm@F1.0
Shutter	Auto/Manual, 1 ~ 1/100000s

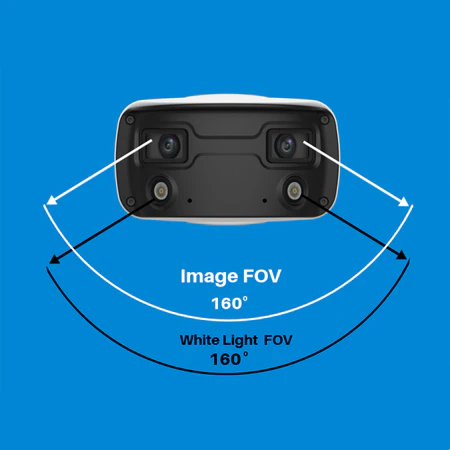

Field of View	160.00°±10° (H), 43.22° (V), 180.13°±10° (D)
Minimum Illumination	Colour: 0.0005Lux (F1.0, AGC ON)
Digital noise reduction	2D/3D DNR
White Light Range	2 LEDs Up to 30m (98ft) white light range
WDR	DWDR
Frame Rate	Main Stream: 4MP (38401080), Max 25fps（Human Body Detection off Sub Stream: 1920540, Max 25fps
Video Bit Rate	128 Kbps~16 Mbps
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction	2D/3D DNR
Smart IR	Supported
HLC	Supported
BLC	Supported
General Function	Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP
Video Compression	H.265, H.264, MJPEG
Audio Compression	G.711
Edge Storage	Micro SD, up to 256 GB
Network	10/100M Base-TX Ethernet
Built-in Mic	Built In two Mics
Built-in Speaker	Supported
Alarm Light	Supported
Power	DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 6.5W
Dimensions (L x H x H)	273× 130 × 76mm (10.7” × 5.1” × 3.0”)
Net Weight	0.95kg (2.09lb)
Material	Metal
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002)
Reset Button	Supported
