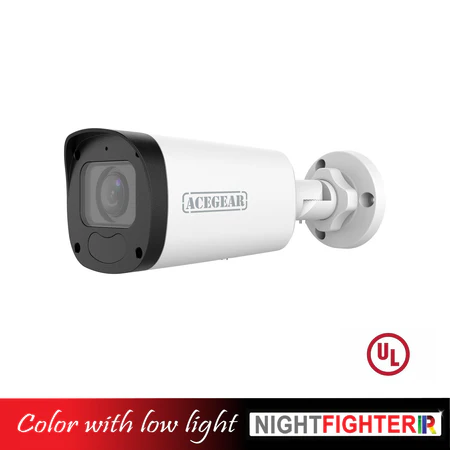

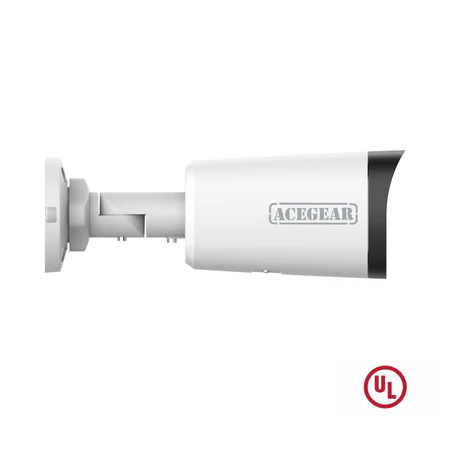

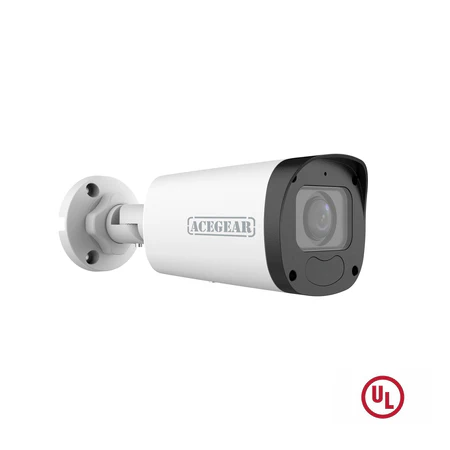

Acegear CI3498MLA IP 4MP 2.8-12mm Motorized Lens, Microphone,120dB True WDR, UL Listed. (IFYBMHFI)

Acegear CI3498MLA IP 4MP 2.8-12mm Motorized Lens, Microphone,120dB True WDR, UL Listed. (IFYBMHFI)

Sensor: 1/3″CMOS sensor
Resolution: 4MP
Lens: 2.8mm-12mm Motorized
Functions: 3D DNR , WDR, 9: Corridor mode
IR Range: Smart IR, up to 50m (164ft) IR distance
Menu: OSD
Micro SD: Supports up to 256GB Micro SD card
Power: Support 12V DC/PoE power supply
Protection: IP67
Warranty: 1 Year

Categories: IP Cameras, Surveillance

Description
Reviews (0)

Acegear CI3498MLA-NF provides important new technology for any security application. The Night Fight Ultra-Low Light technology allows better color picture in very low light conditions (0.003 lux), and when completely dark (0 lux) the EXIR 2.0 technology enhances night mode performance. The Motorized Lens 2.8-12mm option is optimized for capturing a wide horizontal to closed field of view. With 120 dB True WDR (Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions.

Sensor	1/3", 4.0 megapixel, progressive scan, CMOS
Lens	2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
Angle of View	(H)102.79°~ 30.86°; (V)54.50°~ 17.49°; (O)106.94°~35.49°
Adjustment angle	Pan: 0° ~ 360°; Tilt: 0° ~ 75°; Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital Noise Reduction	2D/3D DNR
IR Range	Up to 50m (164ft) IR range
IR On/Off Control	Auto/Manual
WDR	120dB
Frame Rate	Main Stream: 4MP (26881520), Max 25fps; 4MP (25601440), Max 25fps; 3MP (23041296), Max 30fps; 1080P(19201080), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640360,Max 30fps; 2CIF(704288), Max 30fps; CIF(352*288), Max 30fps
Video Bit Rate	128 Kbps~16 Mbps
9:16 Corridor Mode	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
White Balance	Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Supported
Flip	Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping	N/A
HLC	Supported
BLC	Supported
Video Compression	H.265, H.264, MJPEG
Audio Compression	G.711
Suppression	Supported
Edge Storage	Micro SD, up to 256GB
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, 802.1x, SNMP
Network	10M/100M Base-TX Ethernet
Built-in Mic	Supported
Power	DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 8.0W
Dimensions (L x W x H)	206 × 74 × 74mm (8.1” × 2.9” × 2.9”)
Net Weight	0.55kg (1.2lb)
Material	Metal
Working Environment	-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67
Reset Button	Supported
