SoundTube ST-CM-BMG-II, 5.25″ to 8″, In-Ceiling Background Music Speaker with White Seamless Magnetic Grille, White (Each)

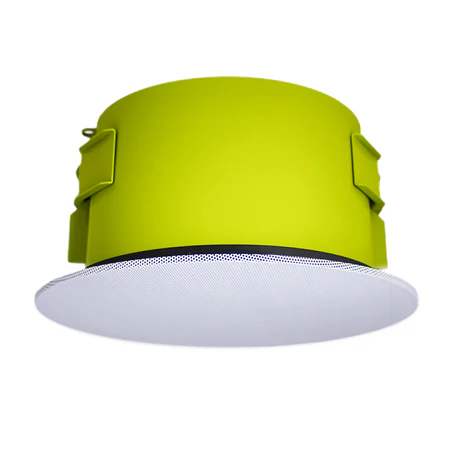

SoundTube CM-BGM-II In Ceiling Speaker in White
Easy-access six-position tap switch for 25/70.7/100-volt and transformer bypass settings allows for easy ordering, stocking and installation. Tuned port on baffle for added musicality and bass response down to 65 Hz (-10 dB). Reduced amplification costs and maximum efficiency of 84.5 dB sensitivity, 16 ohm impedance. Incorporates a painted steel magnetic seamless grille for lasting durability. Adaptable to material thicknesses ranging from 0.035 in. (0.9 mm) to 1.6 in. (40.6 mm). UL 1480 and 2043 listed.
Specifications
|
Manufacturer
|
SoundTube
|
|---|---|
|
Manufacturer’s Category
|
CM-BGM Background Music In-Ceiling
|
|
Shipping Weight
|
9.55 lbs / 4.33 kg
|
|
Carton Height
|
8 in / 203.2 mm
|
|
Carton Length
|
13.25 in / 336.55 mm
|
|
Carton Width
|
13 in / 330.2 mm
|
|
Certifications
|
CE, RoHS, UL1480, UL2043
|
|
Enclosure Properties
|
ABS Glass Fiber Reinforced, Injection Molded, Ported
|
|
Enclosure Volume
|
350 cu in / 5735.47 cu cm
|
|
Included Accessories
|
Conduit Clamp, Cover Plate, Grille, Paint Mask
|
|
Optional Accessories
|
Square Grille (GRL-CM-BGM-II-SQ-WH)|Black Grille (GRL-CM-BGM-II-BK)|Tile Bridge (AC-CMEZ6/8-TB)|Pre-Construction Bracket (AC-CMEZ6/8-PCB)|Junction Box (AC-CM-EZ-JBOX)
|
|
Source Inputs
|
4 Pin Ceramic Terminal
|
|
TAA Compliant (Trade America)
|
No
|
|
BAA Compliant (Made in USA)
|
No
|
|
Backcan Diameter
|
9.67 in / 245.6 mm
|
|
Backcan Height
|
5.75 in / 146.1 mm
|
|
Coverage Angle (±6dB @ 2kHz)
|
105°
|
|
Crossover Frequency
|
5.0 kHz
|
|
Cutout Width/Diameter
|
10.5 in / 266.7 mm
|
|
Directivity Factor (Q) (Averaged 100Hz – 10kHz, @ 2kHz)
|
3.8 and 2.1
|
|
Directivity Index (DI) dB (Averaged 100Hz – 10kHz, @ 2kHz)
|
5.1dB and 3.3dB
|
|
Frequency Response (± 10 dB)
|
56 Hz – 22 kHz
|
|
Frequency Response (± 3 dB)
|
67 Hz – 20 kHz
|
|
Grille Properties
|
Magnetic, Micro-Flange, White, Paintable, Painted, Steel
|
|
Low Frequency Voice Coil
|
1 in / 25.4 mm
|
|
Low Pass Crossover
|
12 dB per octave 2nd order
|
|
Max. Ceiling Thickness
|
1.6 in / 40.6 mm
|
|
Max. Continuous Power RMS
|
40W
|
|
Max. Program Power
|
80 W
|
|
Minimum Impedance (Ω Ohms)
|
16 Ω
|
|
Minimum Ceiling Thickness
|
0.04 in / 0.9 mm
|
|
Network Type: High Pass
|
12 dB per octave 2nd order
|
|
Nominal Impedance (Ω Ohms)
|
16 Ω
|
|
Tweeter Driver
|
1″ Silk Dome w/ BroadBeam Ring®
|
|
Woofer Driver
|
5.25″ Polypropylene Cone w/ Butyl Rubber Surround
|
|
Sensitivity dB @ 1W/1M
|
83.5 dB
|
|
Sensitivity dB @ 2.83V/1M
|
80.4 dB
|
|
Tap Selector
|
Rotary Switch
|
|
Transformer Taps Max. Setting (25V/70.7V/100V)
|
2.5W/20W/20W
|
|
Visible Diameter
|
11.75 in / 298.5 mm
|
|
Visible Height
|
- 10 oz Dual Cone Speaker Provides Familiar Response & Performance
- Quality 5 Watt Dual Voltage Transformer
- Individually Packaged for Stocking & Ordering Convenience
- Safety Listed to UL1480 and UL2043
Applications
The SD72 is an aggressively priced, high quality speaker/transformer
package suitable for almost any paging or background application including
retail stores, restaurants, schools, and other institutional facilities
Specs
| Model | SD72 SD72W SD72WV |
|---|---|
| Size | 8" (205mm) 8" (205mm) 8" (205mm) |
| Power | Taps .25, .5, 1, 2, & 5 Watts |
| Sensitivity | 97dB Average |
| Frequency | 55Hz-19kHz (±5dB) |
| Dispersion | 105° (2kHz Octave Band, -6dB Points) |
| Diameter | 81 /8" (205mm) 123 /4" (206mm) 123 /4" (206mm) |
| Depth | 27 /8" (73mm) |
Additional information
| Color | Black, White |
|---|
